Car LED Spotlight Radar Fuel tank Rearview Steering Wheel Heating Button Switch with Wire for ISUZU MU-X D-MAX SPARK CROSS
$4.00 USD
SPECIFICATIONS
Backlight color: Red+Green Light
Brand Name: ShangDeLi
Car Model 1: for ISUZU D-MAX 2012
Car Model 2: for ISUZU D-MAX (CAB 4,SPACECAB,SPARK)2015-ON
Car Model 3: for ISUZU D-MAX (CV -CROSS,HI-LANER 4 DOOR/2 DOOR)2016 -ON
Car Model 4: for ISUZU MU-X 2014-ON
Car Model 5: for ISUZU MU-X-ON
Choice: yes
High-concerned chemical: None
Item Height: 3.3
Item Length: 5.2
Item Type: BUTTON SWITCH
Item Width: 2.2
Material: ABS
Origin: Mainland China
Special Features: Button Switch
semi_Choice: yes
Note: Please confirm that the size of the installation location is consistent with the size of the product before purchasing, thank you. If it is the same, it can be used.

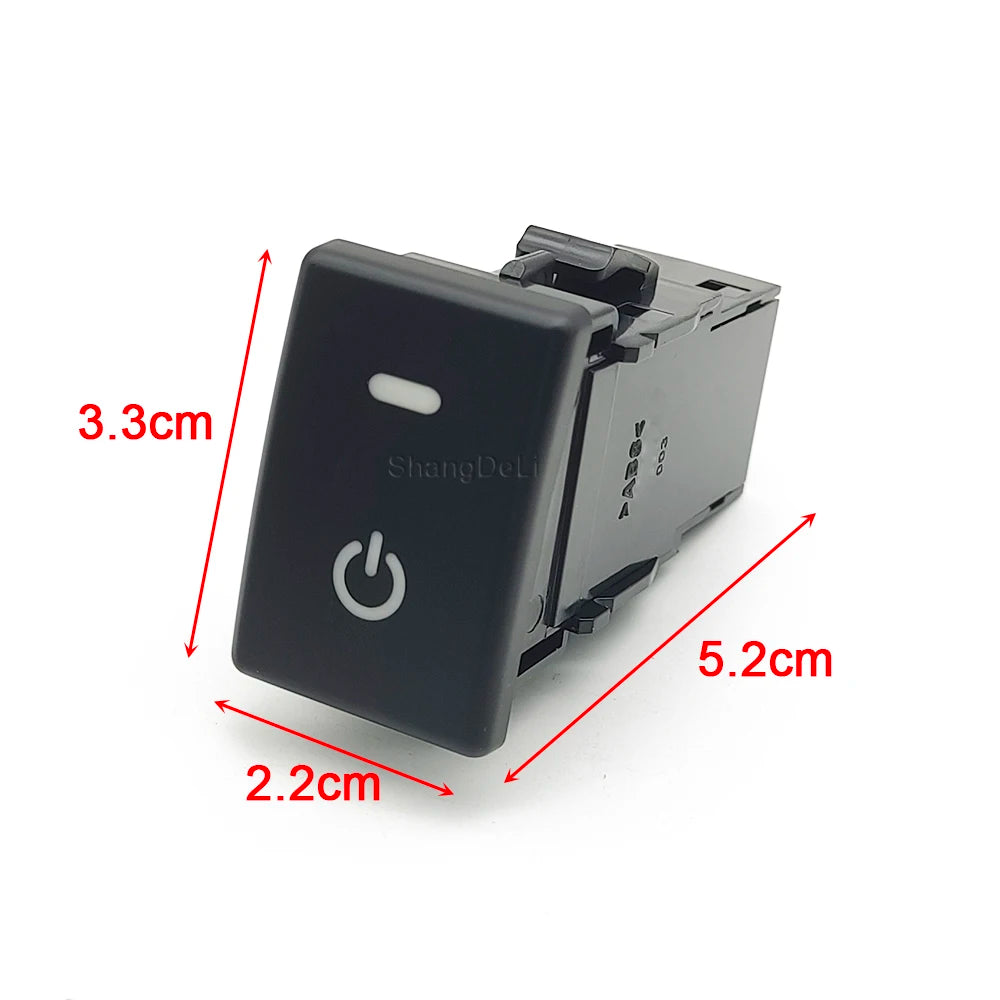

Size:2.2*3.3*5.2cm

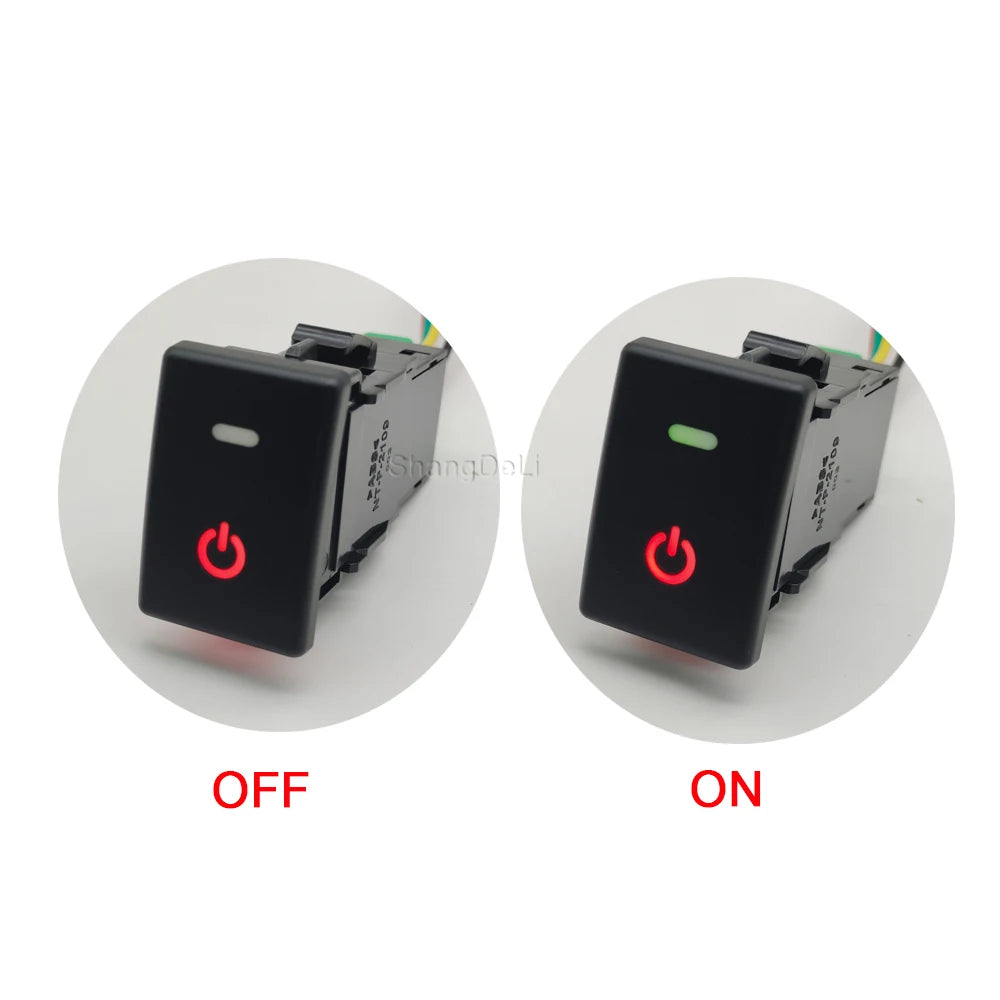

Backlight color: the top working indicator light is green,the bottom icon is red.
Feature:When you press the button ,it will stay in position, On-Off model. It is latching button. ( press to turn it on, press again to switch off.)
Fit for:
for ISUZU D-MAX 2012
for ISUZU D-MAX(CAB 4,SPACECAB,SPARK)2015-ON
for ISUZU D-MAX(CV -CROSS,HI-LANER 4 DOOR/2 DOOR)2016 -ON
for ISUZU MU-X 2014 -ON
for ISUZU MU-X-ON

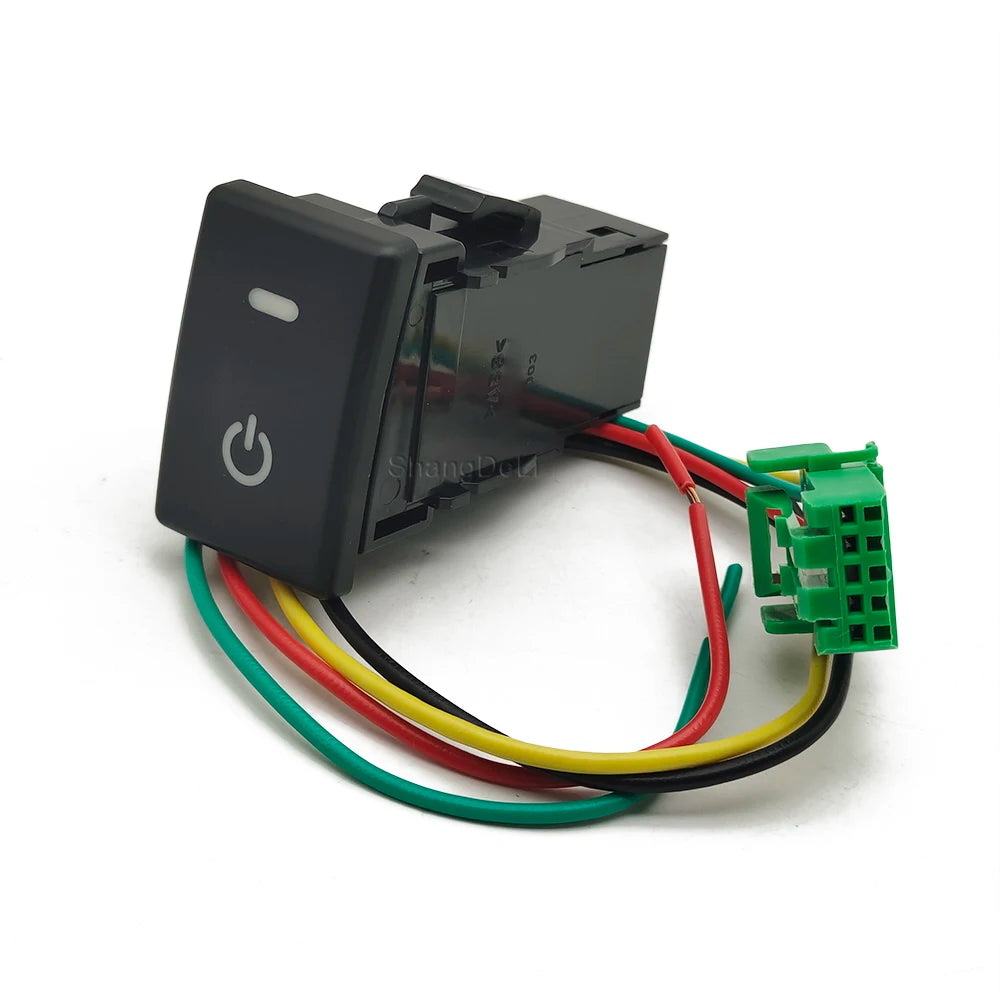

Package Includes:
1 x Car Switch
1 x Cable

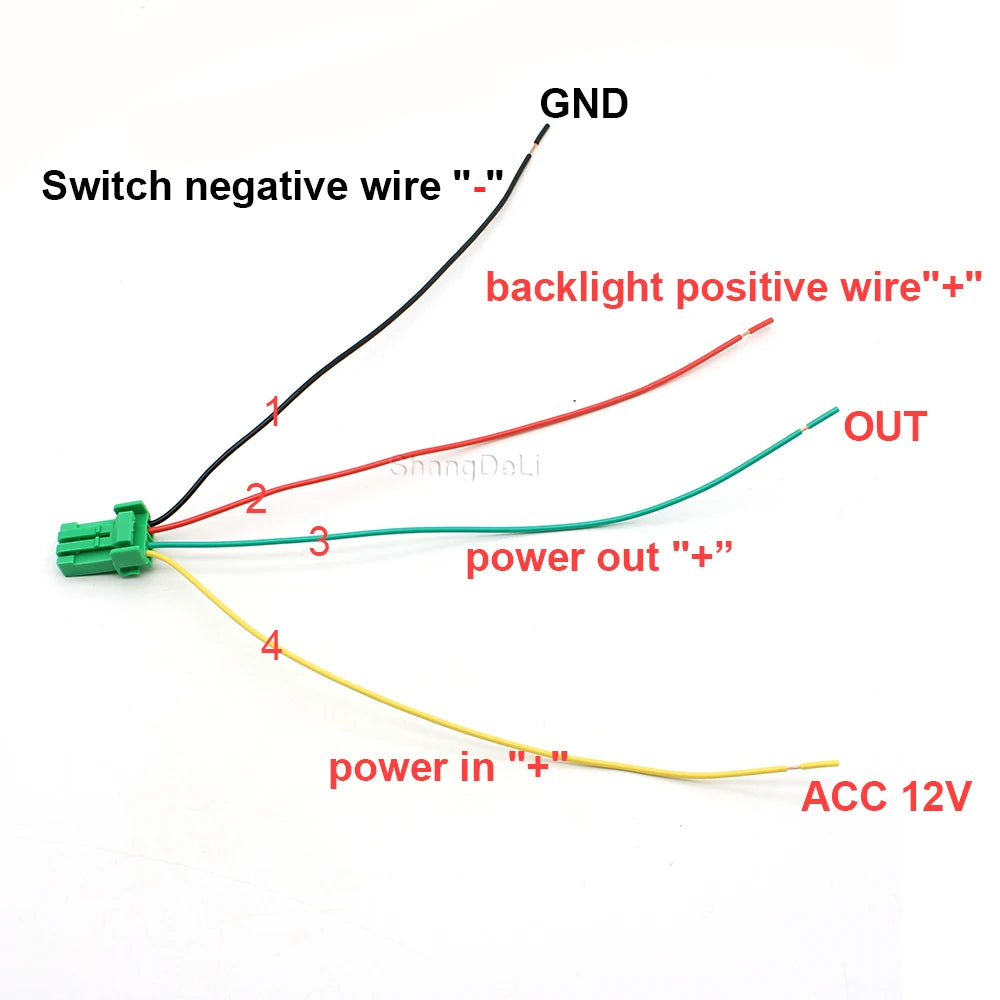

Wiring diagram:
Wiring diagram:
Black wire: switch backlight and indicator light common negative wire "12V-"
Red wire: switch backlight positive wire "12V+"
Green wire: switch positive output wire "OUT+"
Yellow wire: switch positive input wire "IN +/ACC"
for ISUZU D-MAX 2012
for ISUZU D-MAX(CAB 4,SPACECAB,SPARK)2015-ON
for ISUZU D-MAX(CV -CROSS,HI-LANER 4 DOOR/2 DOOR)2016 -ON
for ISUZU MU-X 2014 -ON
for ISUZU MU-X-ON
Package Includes:
1 x Car Switch
1 x Cable
Wiring diagram:
Wiring diagram:
Black wire: switch backlight and indicator light common negative wire "12V-"
Red wire: switch backlight positive wire "12V+"
Green wire: switch positive output wire "OUT+"
Yellow wire: switch positive input wire "IN +/ACC"
