SPECIFICATIONS

APP: Eweklink

Brand Name: SONOFF

Certificate: CE/FCC/ROHS

Control Distance: WiFi

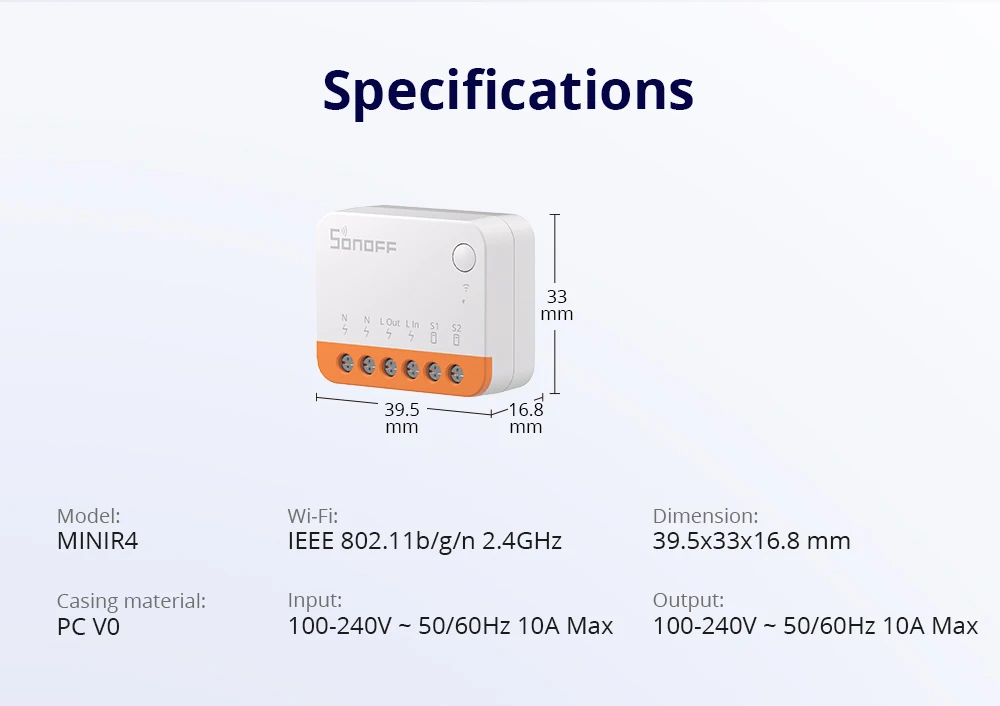

Dimension: 39.5*33*16.8mm

Gang: 1-gang

IP level: IP24

MCU: ESP32-D0WD-V3

Material: PC V0

Max Load: 10A/2400W

Max. Current: 16 A

Max. Voltage: 250 V

Model Number: MINIR4

Network: Wi-Fi

Operating Temperature: -60℃~65℃

Place of Origin: Guangdong, China

Power Source: 110V AC,220V AC

Product Name: Sonoff MINIR4

Voltage: 100-240V AC 50/60Hz

Whether The Smart: Yes

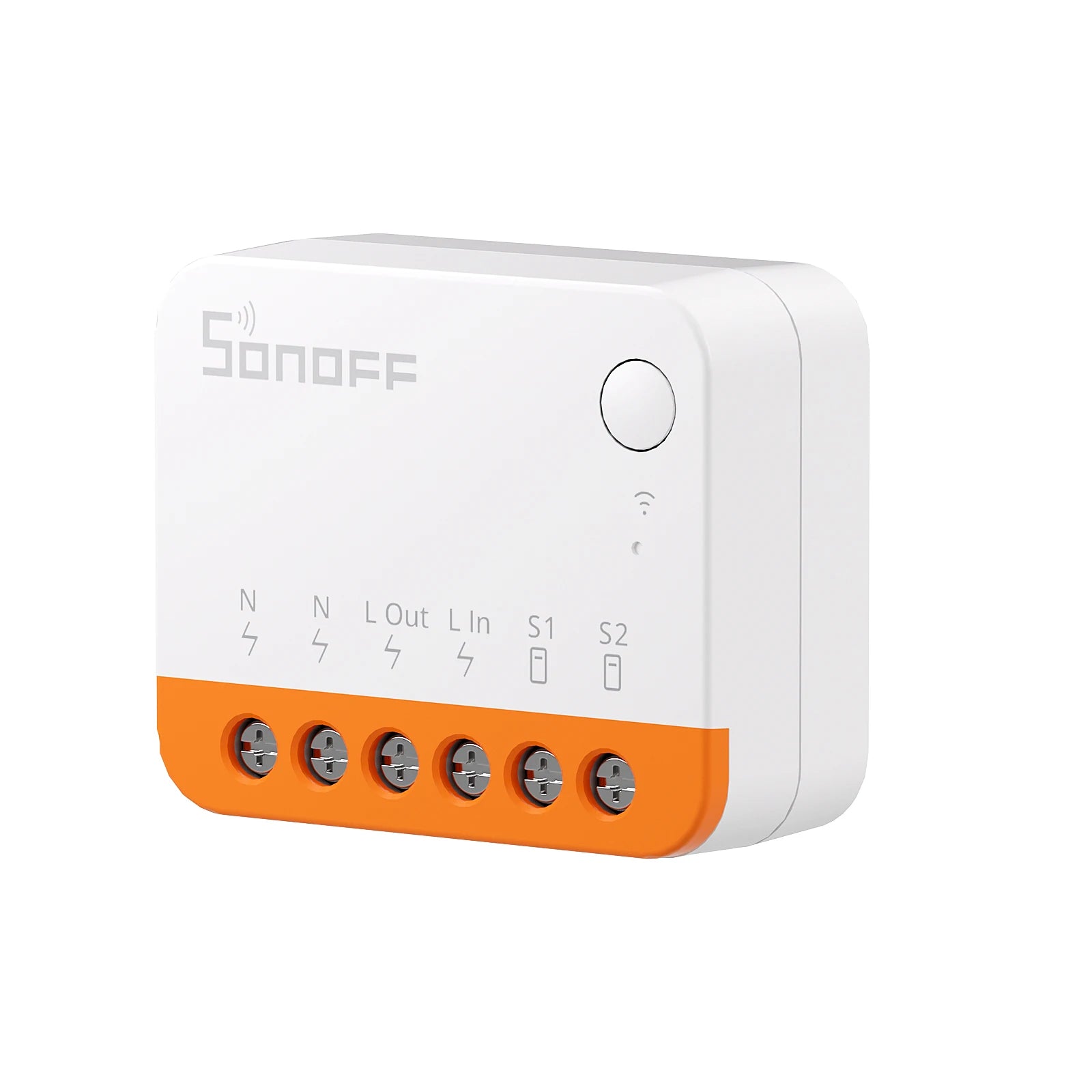

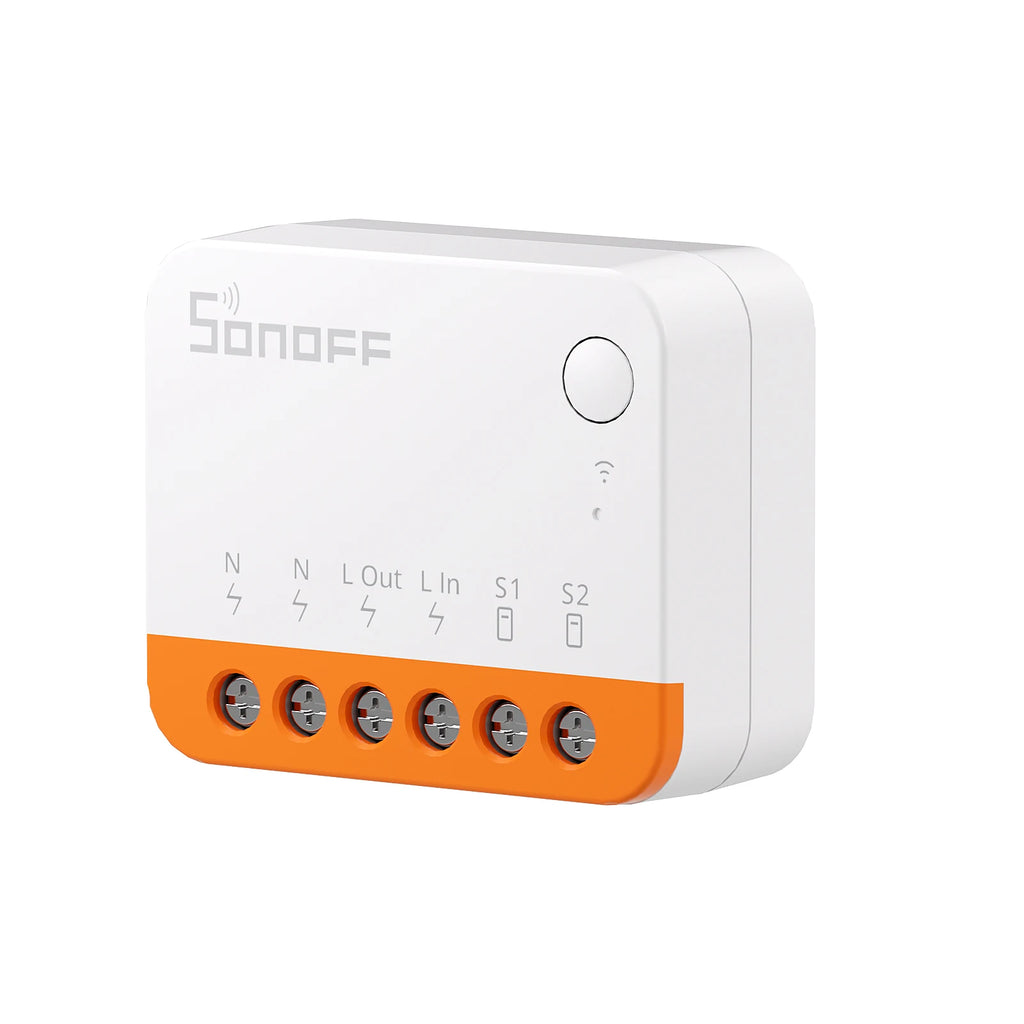

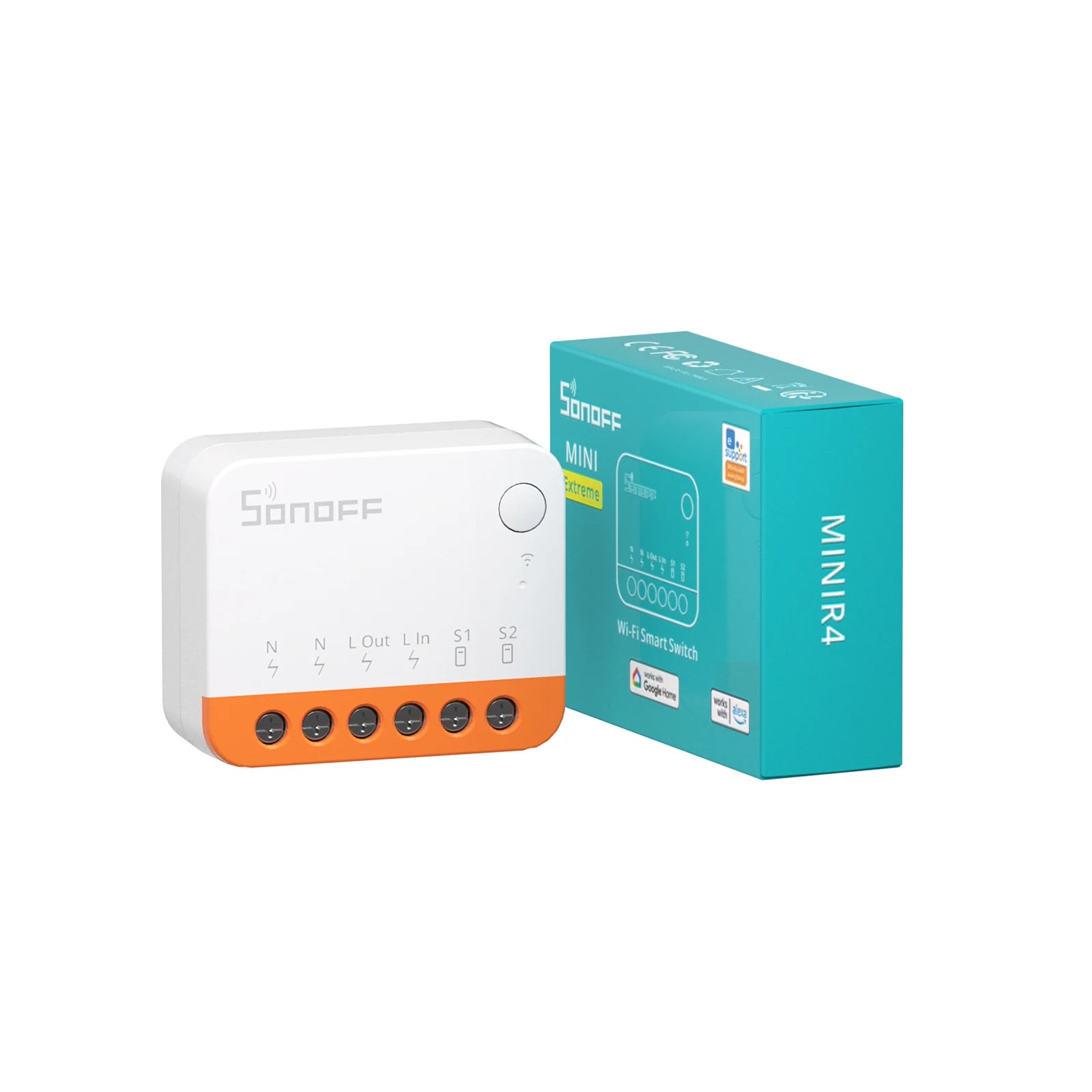

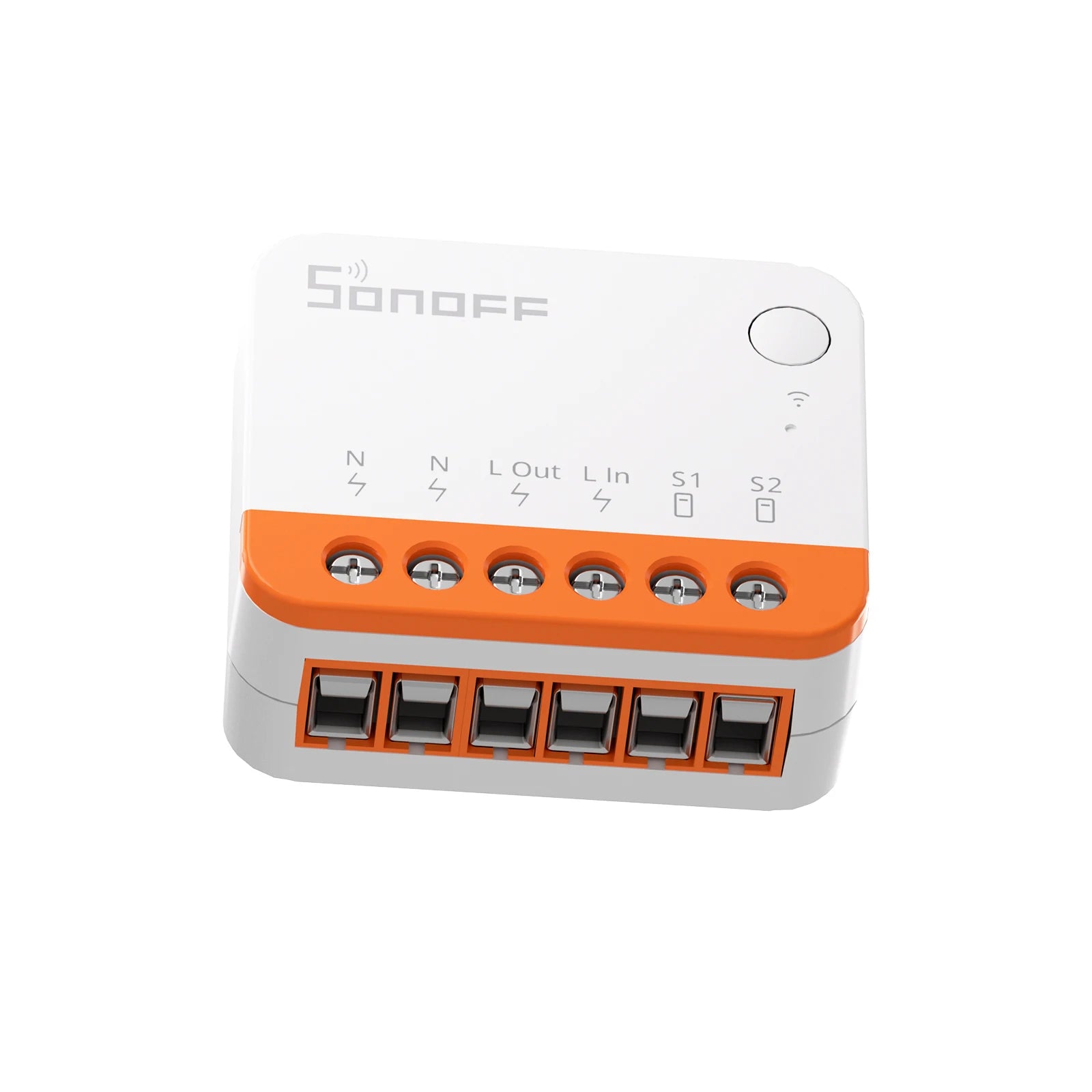

SONOFF MINIR4  MINI Extreme Wi-Fi Smart Switch Super Tiny Size Detach Relay Mode External Switch Control eWeLink APP Control

Description

MINIR4 is a mini extreme WiFi smart switch equipped with ESP32 chip, that turns traditional switches into smart switches,

automating lights and electronic devices, and tiny size fits in various mounting boxes, including the smallest EU-type/86

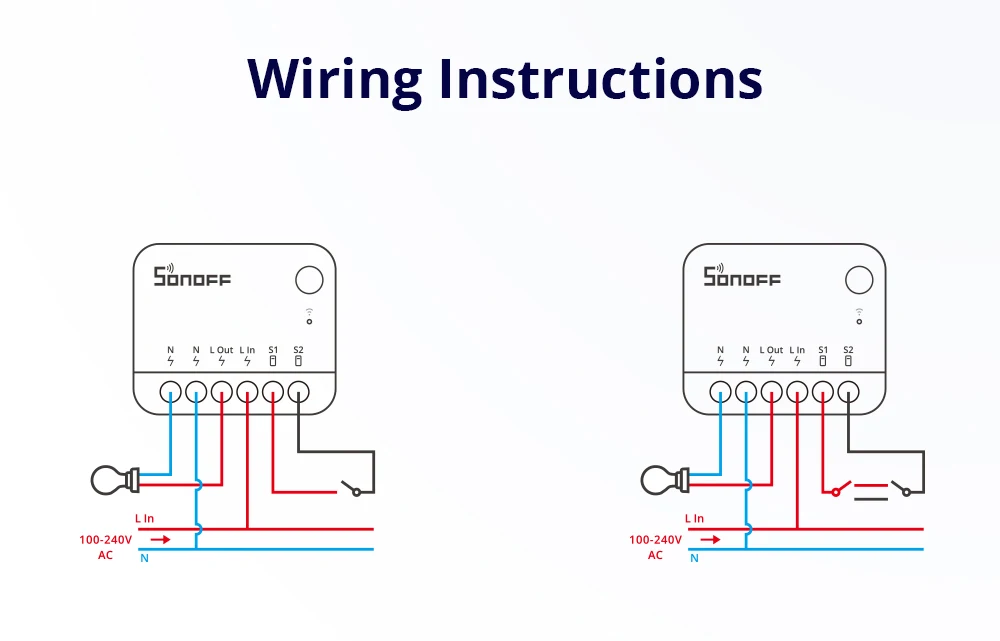

type/120 type mounting box. MINIR4 supports external switch control and easily connects to the momentary switch, door

exit switch, SPDT switch, latching switch, and even dry contact sensors.
MINIR4 has "detach relay" mode, which means the states of external switches and relay are separated, so operating the

external switch button won't affect the relay state. Such as, if you open detach relay" mode, when you turn off the light, your

smart light won't be offline, and you still can use App to control smart lights.
MINIR4 is a smart switch with the gateway function of “eWeLink-Remote“.After pairing with MINIR4, MINIR4 can be controlled

locally by S-MATE through "eWeLink-Remote" signal, and trigger other smart devices in the smart scene.

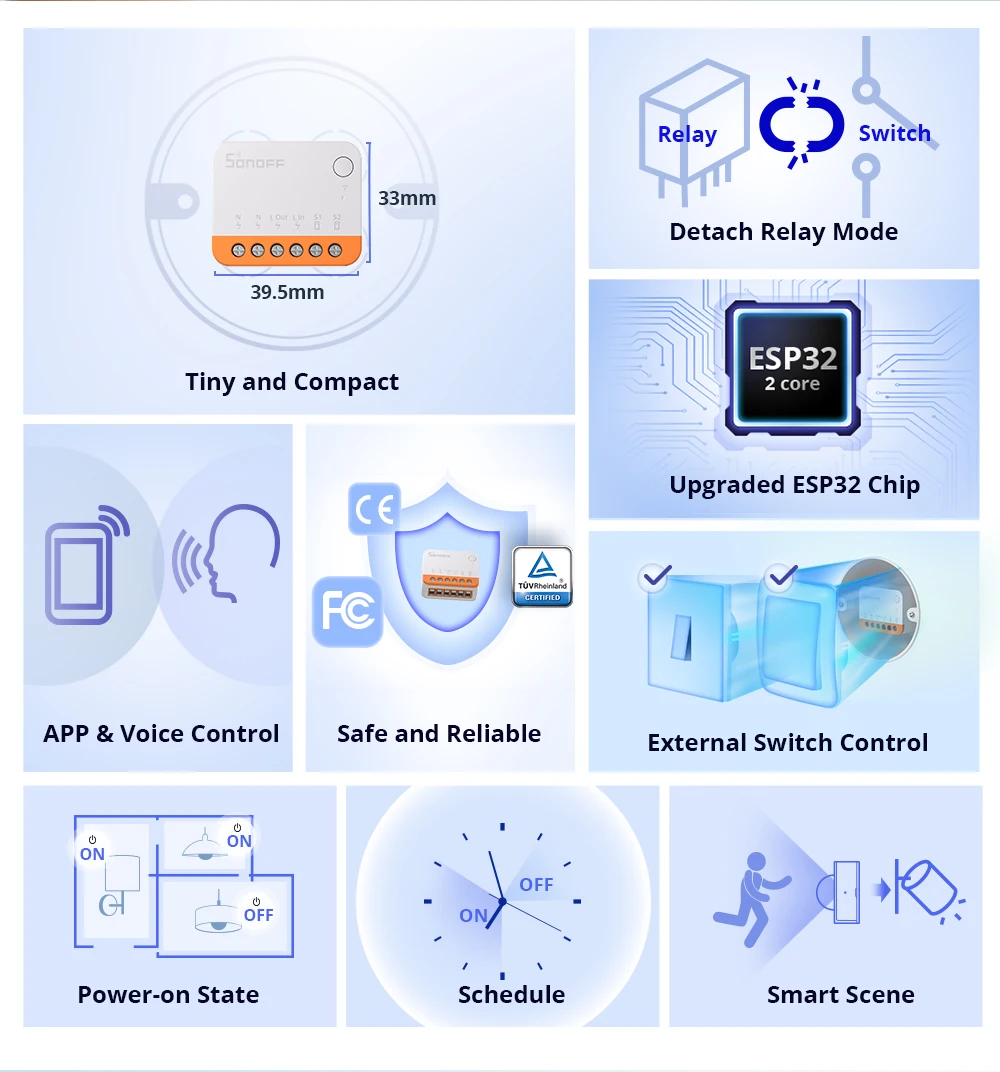

Feature

1.[Super Tiny Size]Its compact size allows it to be installed in various mounting boxes, including the smallest European standard.
2.[External Switch Control]Easily connect to the momentary switch, door exit switch, SPDT switch, latching switch, and even dry contact sensors.
3.[Detach Relay Mode]MINIR4 has “detach relay” mode, which means the states of external switches and relay are separated, so operating the external switch button won’t affect the relay state.

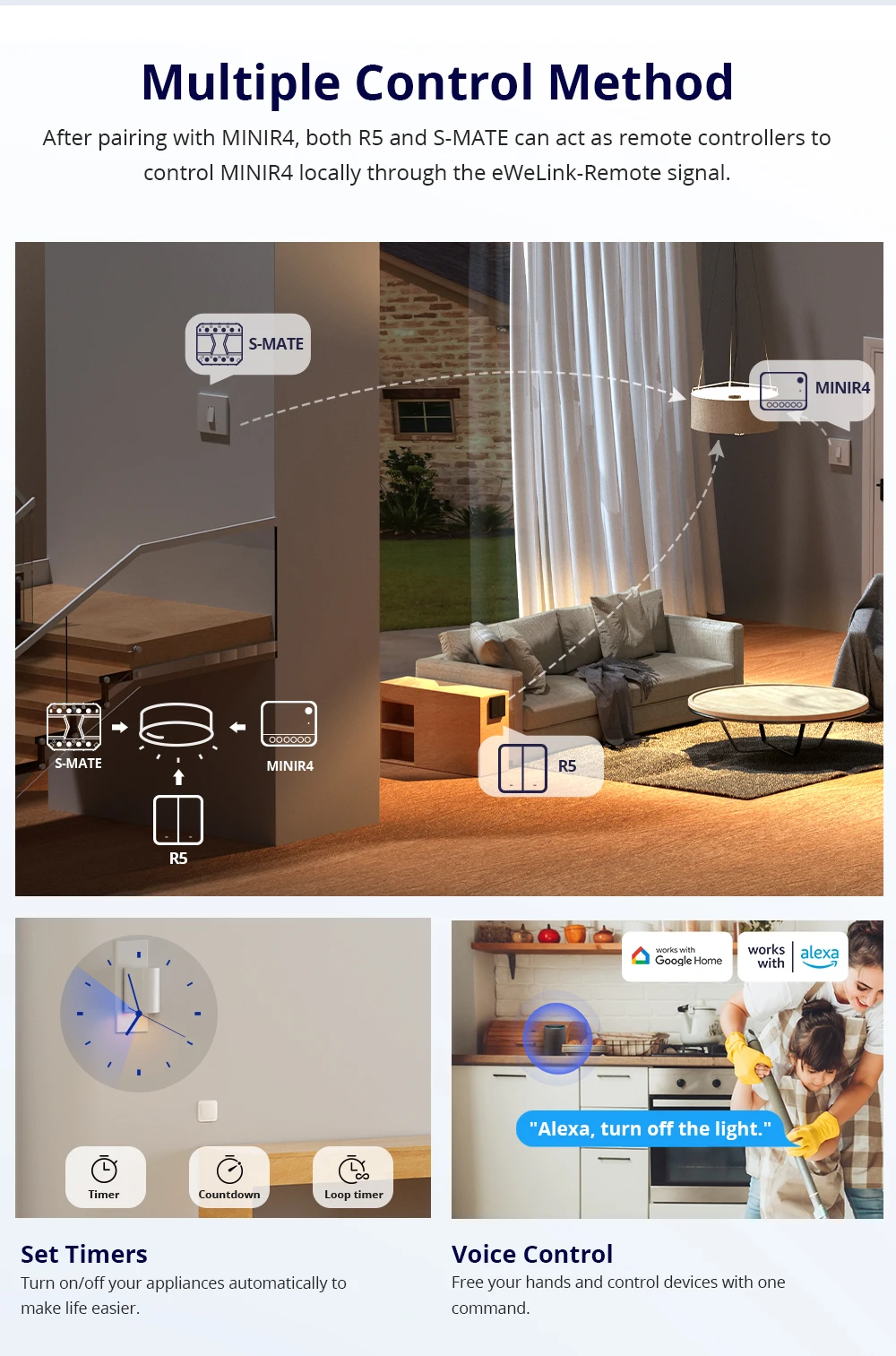

4.[eWeLink-Remote Control]MINIR4 is a smart switch with the gateway function of “eWeLink-Remote”. You can add “eWeLink-Remote” sub-devices, R5 and S-MATE, after pairing with MINIR4, both R5 and S-MATE can act as remote controllers to control MINIR4 locally through the eWeLink-Remote signal.

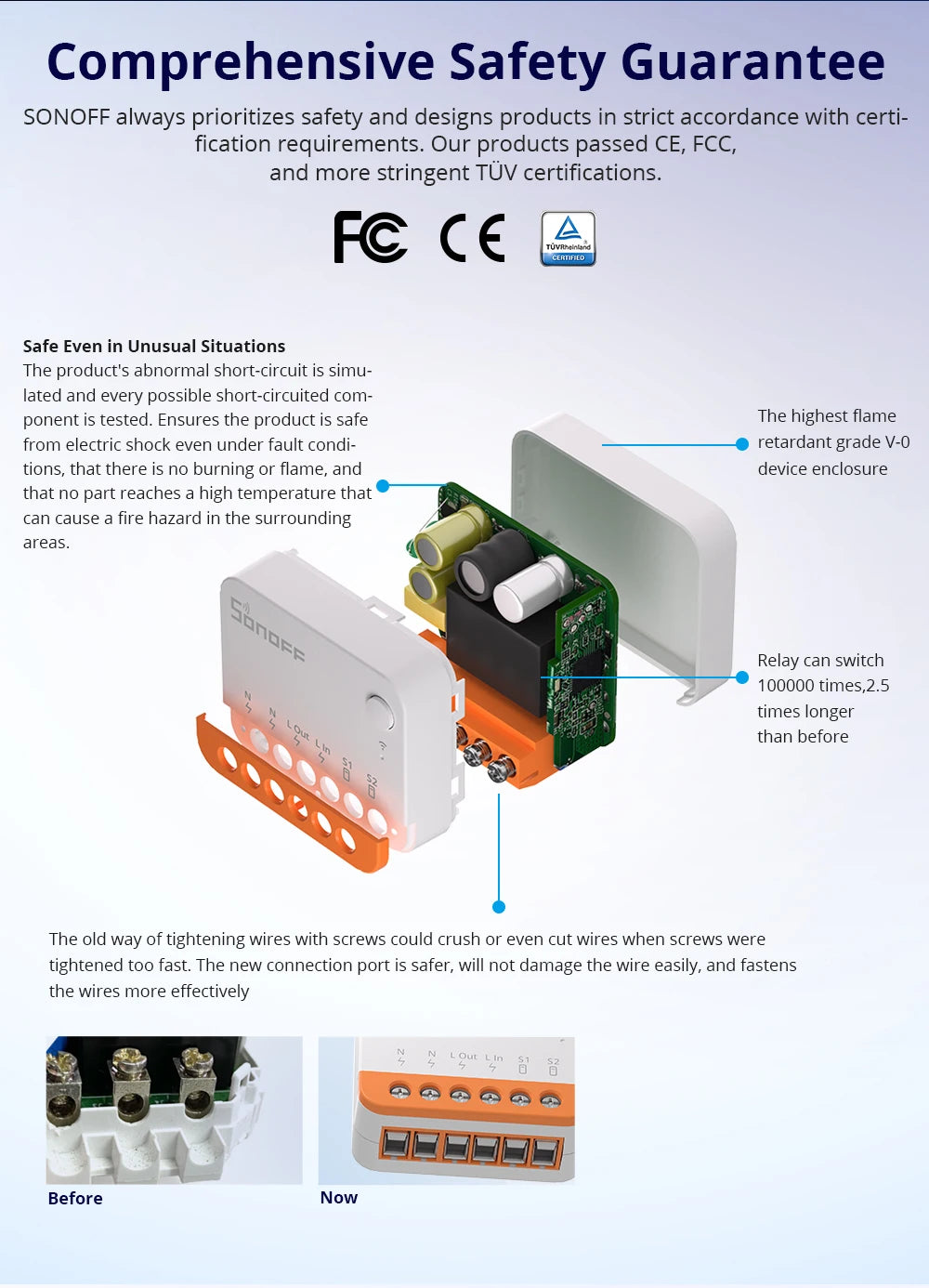

5.[Safe & Reliable]TÜV, CE, and FCC certifications ensure a safer and more reliable product.
